Time Electronics 1051
RESISTENCE DECADE BOX
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | - | - | - | - |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $0.00 | $0.00 | $0.00 | $0.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Contact us on 1300 601 670 for fantastic long term hire rates.
DESCRIPTION

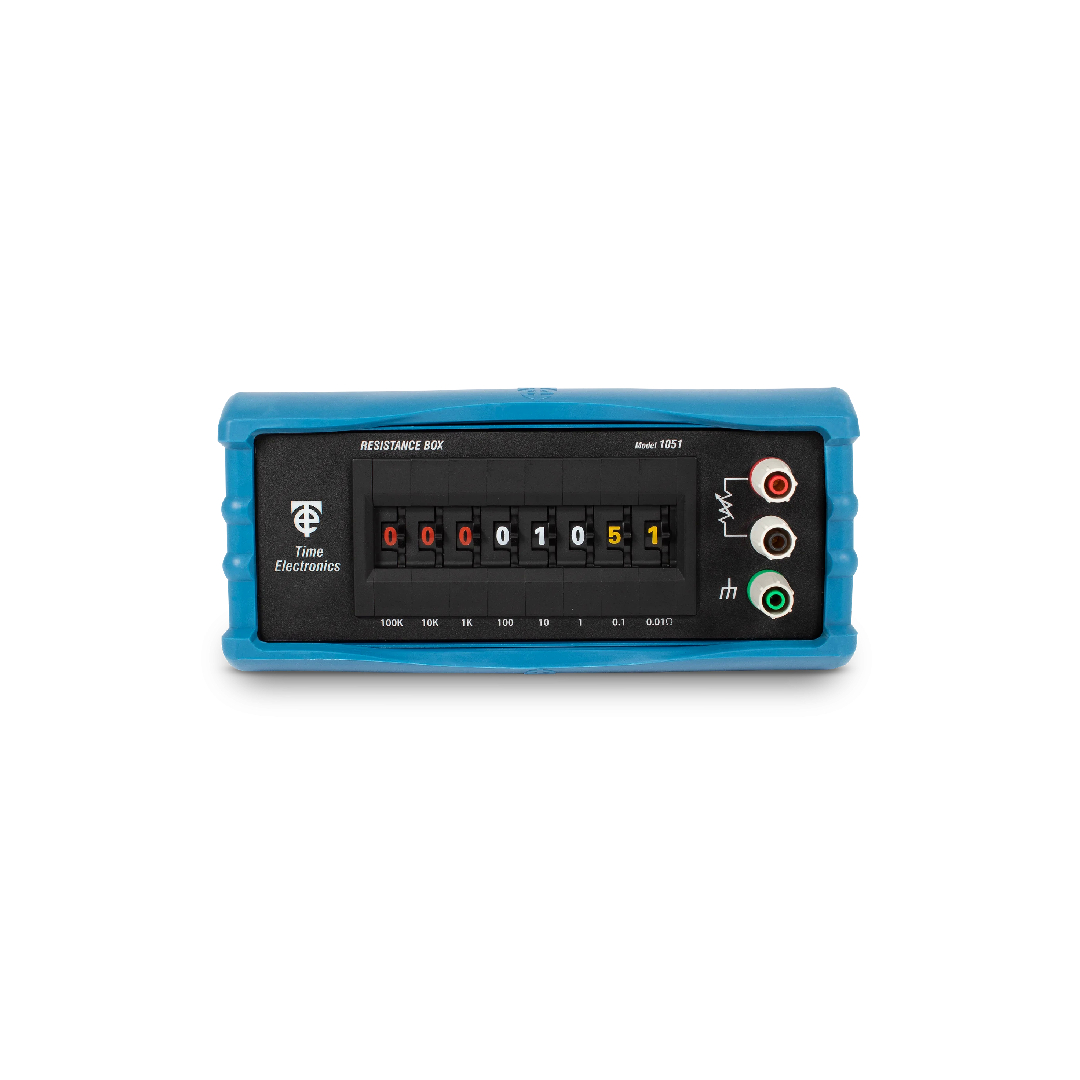

A precision resistance decade box designed for general laboratory work including platinum resistance thermometry.
The 1051 is compact and durable, housed in a robust metal case with removable protective rubber cover, making it
ideal for use in either the laboratory or field. Excellent accuracy is achieved by using high stability metal film
resistors. The 8-digit thumbwheel switch enables simple and precise setting with a clear indication of the
resistance value.
Switch Contacts: Special attention has been given to the reliability of operation. A special
multiple gold contact
arrangement ensures low contact resistance and continued operation even if a contact fails.
Clear Visual Indication: To make selecting and reading the setting easy the 1051 incorporates
colour coded digits:
kilohms - red, ohms - white, milliohms - yellow.
SPECIFICATIONS
Technical Specification
| Range | 0 to 1 MΩ |
| Resolution | 0.01 Ω steps |
| Decade | 0.01 Ω | 0.1 Ω | 1 Ω | 10 Ω | 100 Ω | 1 kΩ | 10 kΩ | 100 kΩ |
| Accuracy | ± 10 % | ± 5 % | ± 1 % | ± 0.5 % | ± 0.1 % | ± 0.1 % | ± 0.1 % | ± 0.1 % |
| Max Current | 1 A | 1 A | 1 A | 0.3 A | 0.1 A | 33 mA | 10 mA | 3 mA |
| Residual Resistance | Less than 90 mΩ |
| Power Rating | 1 watt per resistor |
| Voltage Rating | Maximum 250 V DC, 176 V AC RMS |
| Temperature Coefficient | 50 ppm/°C |
General Specification
| Dimensions | W 215 x H 100 x D 120 mm including protective cover (W 200 x H 75 x D 110 mm without) |
| Weight | 1 kg including protective cover (0.6 kg without) |
| Supplied With | Protective cover (fitted) and user manual |
| Optional Extras |
Carry case (protective cover is removed when used). Calibration certificates: Traceable (factory) and accredited (ISO 17025). |
| Country of Origin | UK |
| Shipping Details | Packed Dimensions: L 31 x W 24 x H 25 cm / Packed Weight: 2 kg |
| HS Code | 9030 3370 |
