Wavecom TnP Prime

APPLIANCE TESTER

DAILY RATES
Cost per Day - - - -
Duration (days) 1-7 8-14 15-29 30
TYPICAL HIRE PERIODS
Cost $0.00 $0.00 $0.00 $0.00
Duration 7 Days 14 Days 29 Days 30 Days
Committing to 3, 6 or 12 months?
Contact us on 1300 601 670 for fantastic long term hire rates.

DESCRIPTION

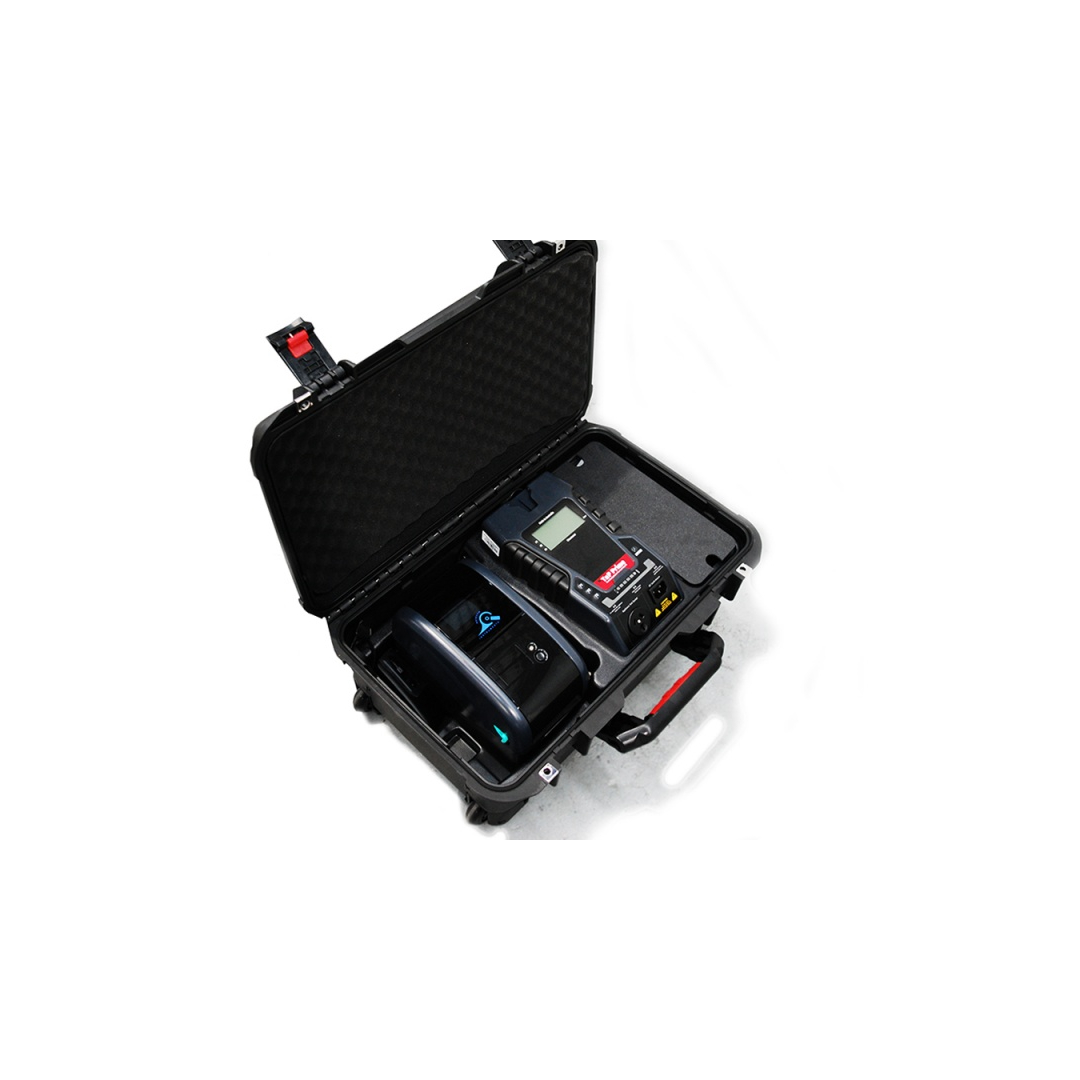

The TnP Prime is the latest generation of Appliance Tester from Wavecom. Offering a fully integrated testing, tag printing and tag scanning system that integrates seamlessly with the new WinPATS App via Bluetooth, the TnP Prime is the cutting edge in appliance testing technology.

SPECIFICATIONS

AC Input 110V-240V 50/60Hz
Mains Supply Tests Checks Polarity and continuity of mains supply by LED indicators (A-N, A-E, and N-E). (Flashing red LED indicates test fail)
Class I Tests - Earthed Appliances Appliance Check: Ensures appliance is plugged in and turned on.
Earth Bond Test: 200mA test current. Pass level Less than 1.0 Ω. Measurement: 0.01Ω to 10 Ω.
Insulation Test: 500VDC / 250VDC. Pass level Greater than 1M Ω. Measurement: 0.1Ω to 10MΩ.
*See also: Leakage Test
Class II Tests - Double Insulated Appliances Appliance Check: Ensures appliance is plugged in and turned on.
Insulation Test: 500VDC / 250VDC. Pass level greater than 1MΩ. Measurement: 0.1Ω to 10MΩ.
*See also: Leakage Test
Extension Lead Tests Earth Bond Test: 200mA test current. Pass level Less than 1Ω. Measurement: 0.01Ω to 10.0Ωs.
Insulation Test: 500VDC / 250VDC. Pass level Greater than 1MΩ. Measurement: 0.1Ω to 10.0MΩ.
Continuity/Polarity Test: 250VAC check continuity and polarity of leads. Displays Pass/Fail.
Power Measurement Leakage Current: 0 to 30.0mA at 200 to 265V.
Load Current: 0.0 to 10Amp (20Amp for TnP Prime 20A)
Voltage: 200 to 265VAC - Power Factor: 0.00 to 1.00.
Apparent Power: 0 to 2400VA -Power 0 to 2400W.
Meter Mode® Green flashing LED denotes Meter Mode is engaged.
Load Current: 0.0 to 10 Amps.
Voltage: 200 to 265VAC.
Apparent Power: 0 to 2400VA.
Power: 0 to 2400W.
RCD Tests Trip Current: 2 to 500mA in 1mA steps - User selectable.
Trip Time: 0 to 3,000ms at .001sec resolution.
Current Ramp Trip Test: 0 to 500mA in 1mA increments.
Leakage Tests Leakage Current: 0 to 30.0mA at 200 to 265V.
Earth Leakage Test: 240VAC Mains. Pass level 1, 2.5, 5.0 mA leakage test levels.
Note 1: Pass level for CLASS 1 is 5 mA; pass level for CLASS 2 is 1 mA.
Note 2: Leakage test may be performed if a standard CLASS 1 or CLASS 2 is not possible.
Battery 6700 mAH, 98WH, Charge Time Around 4 Hours.
Bluetooth Bluetooth Low Energy technology with inbuilt antenna, with over 50 metre range.
Tablet 8 inch 800 x 1280 HD screen, 4G Android tablet with 5 megapixel rear camera and 2 megapixel front camera, 1.28Ghz Quad Core processor with Android Go and docking accessories
